Top 10 Electrical Parts 30A Range Current Sensor Module Acs712

Specification:
The current sensor chips: ACS712ELC-05B.
Pin 5V power supply, on-board power indicator.
The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A.
Built in a potentiometer for sensitivity control.
Convenient and easy to install.

Package Content : 2 X 5A Current Sensor Module

Split core current transformer are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).
This Split core current transformer is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Applicable for current measurement, monitoring, and protection of the following devices:
AC motor
Air compressor
Lighting equipment

Specification:
Input Current: 0~20A AC
Output Voltage: 0~1V
Work Frequency: 50 ~ 1KHz
Secondary Coil: 1800 +- 2T
Accuracy: +-1%
Non-linearity: +- 3%
Build-in sampling resistance£¨RL): 93¦¸
Resistance Grade: Grade B
Work Temperature: -13F~ +158F (-25C ~ +70C)

Safety indicators:
Dielectric Strength(between shell and output): 1000V AC/1min 5mA.
Fire resistance property: In accordance with UL94-VO.

Leading Wire in Length: 1m
Open Size: 13mm x 13mm

Packing List:
20A Split Core Current Transformer x1

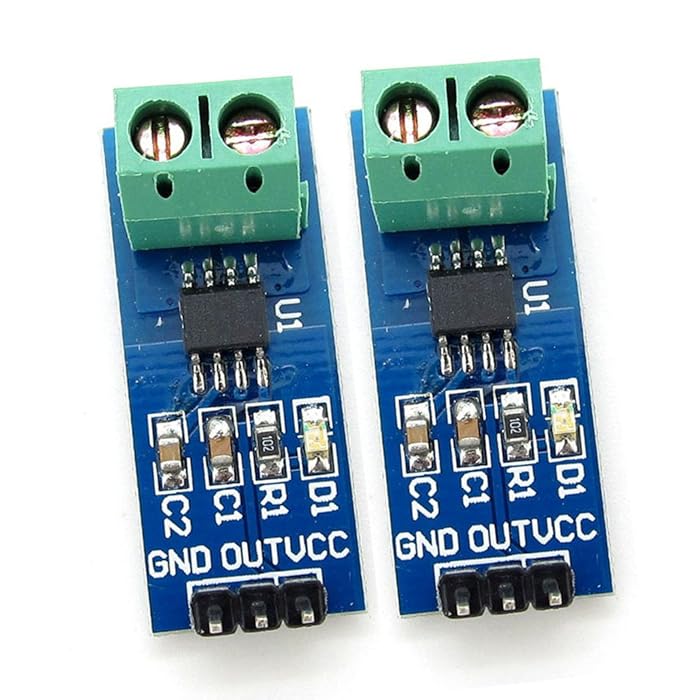

HiLetgo ACS712 30A Current Sensor Module
Description:
1. The current sensor chips: ACS712ELC
2. Current Range: 30A
3. Pin 5V power supply, on-board power indicator;
4. The module can measure the positive and negative 30 amps, corresponding to the analog output 66mV / A;
5. No test current through the output voltage is VCC / 2;
6. PCB board size: 31 (mm) x13 (mm);
Note: ACS712 is based on the principle of the Hall test, please use this field to avoid impact
Package Included:
2* HiLetgo ACS712 30A Current Sensor Module

Features:
Chip: ACS712ELC-05B
Supply power: 5V
Measuring range: 5A
Analog output: 185 mv/A
When there is no the detection current through, the output voltage is VCC / 2
PCB board dimension:31x13mm

Package Contents:
5x5A range ACS712 current sensor module

Lokar Backup Light/Neutral Safety Switch offers the choice of back-up light switch or neutral safety switch kit. It features a single trigger for the back up light switch, or a double trigger for the neutral safety switch. The kit is not intended to function as both. All mounting hardware is included.

-Windows Guide-

To evaluate and develop the YDLIDAR under Windows, you need to install the serial port driver of the USB adapter board.

Note: The drive current of the USB interface of some development platforms or PCs is weak, and the Lidar needs to access the +5V auxiliary power supply, otherwise it will work abnormally.

-Performance characteristics-

Application field: Indoor

Light source: Infrared (785nm)

angle:360°

Accuracy: Full range＜2%

Noise:＜35db

Range finder frequency:5000 times/S

Scanning frequency:7Hz(Adjustable)

Angular resolution:0.63°

Measuring distance:0.12m – 10m

Laser grade:class 1

Interface

UART:LVTTL Level standard

Support scan frequency adjustable:yes

Support low power:yesMechanical / electronic parameters

Electrical connection: 8 pin  PH2.5 Connector

working voltage:5V500MA

Power waste:1.5W (Start peak2.5W)

Shell color:black and blue

weight:193g

size:102mm*66mm*52mm

-Environmental parameters-

Working environment temperature:0~40°

Storage temperature range:0~70

Development support

Linux drive:yes

drive:yes

-Package Content-

1x YDLIDAR X4

1x USB Micro Cable

1x USB Adapter board

1x PH2.0-8P Pin Cable

-Techical Support-

https://www.youyeetoo.com/blog/ydlidar-x4-lidar-laser-radar-ld0001-21

Tech-Team: [email protected]   Skype: monica_9122

Product Customization:  [email protected]

Current Sensor Module Board, +/-100 Amp, DIN Rail Mount Version.

Features：
The item of current sensor module provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.
Output voltage proportional to AC or DC currents.
High quality PCB housing/carrier, DIN rail mountable – for width 35 / 32 / 15mm rails.
DIN mount case can be taken apart for panel mount use.
FR-4 fiber glass PCB, dual copper layers.
100% new, never used.

Electrical Parameters:
Load Maximum Current: ±100A.
Load Frequency Bandwidth: DC ~ 120 kHz.
Isolation Voltage: 4800V AC.
Sensitivity: 20mV/A.
Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC.
Operating Current: 20mA(max).

Specification:
